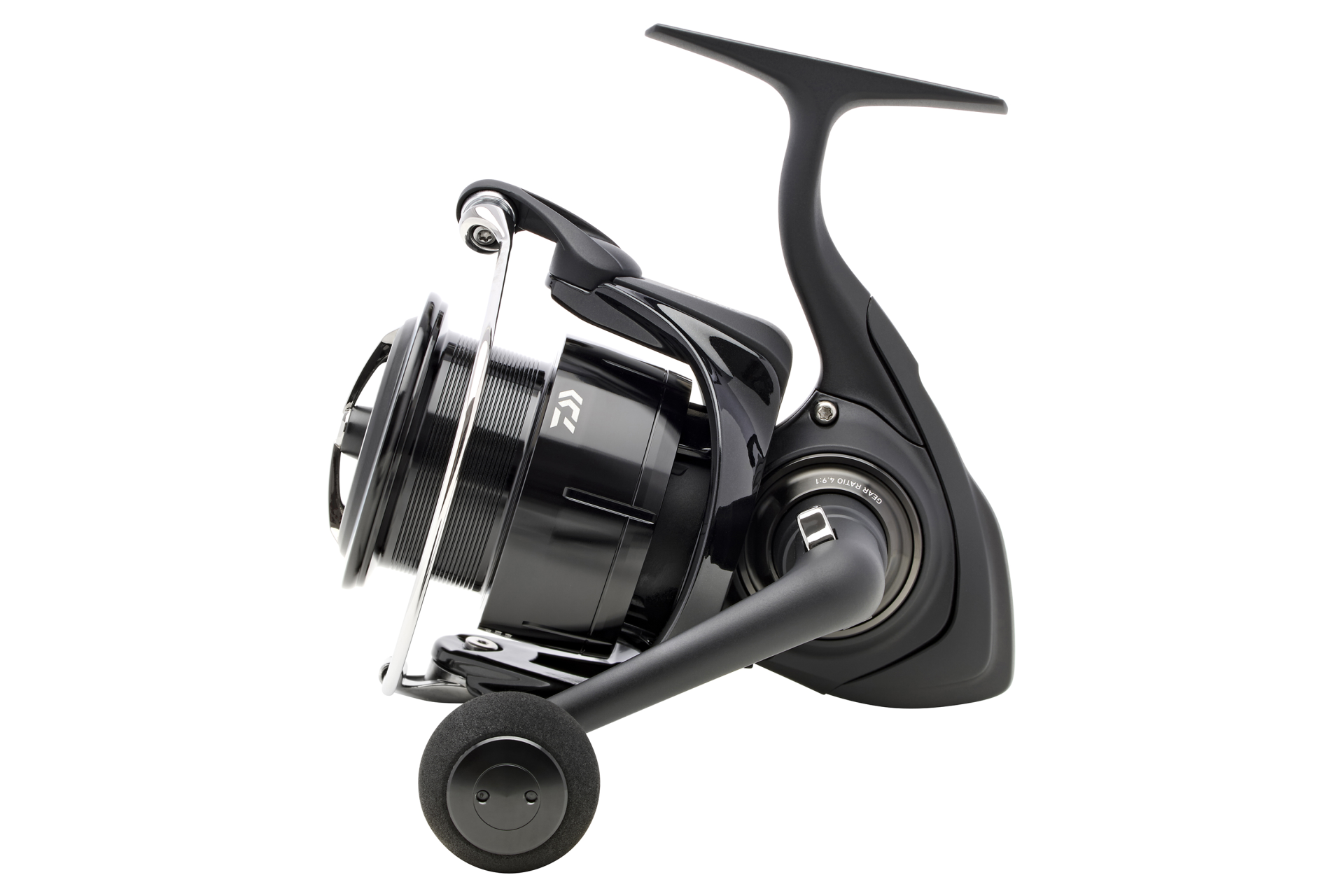

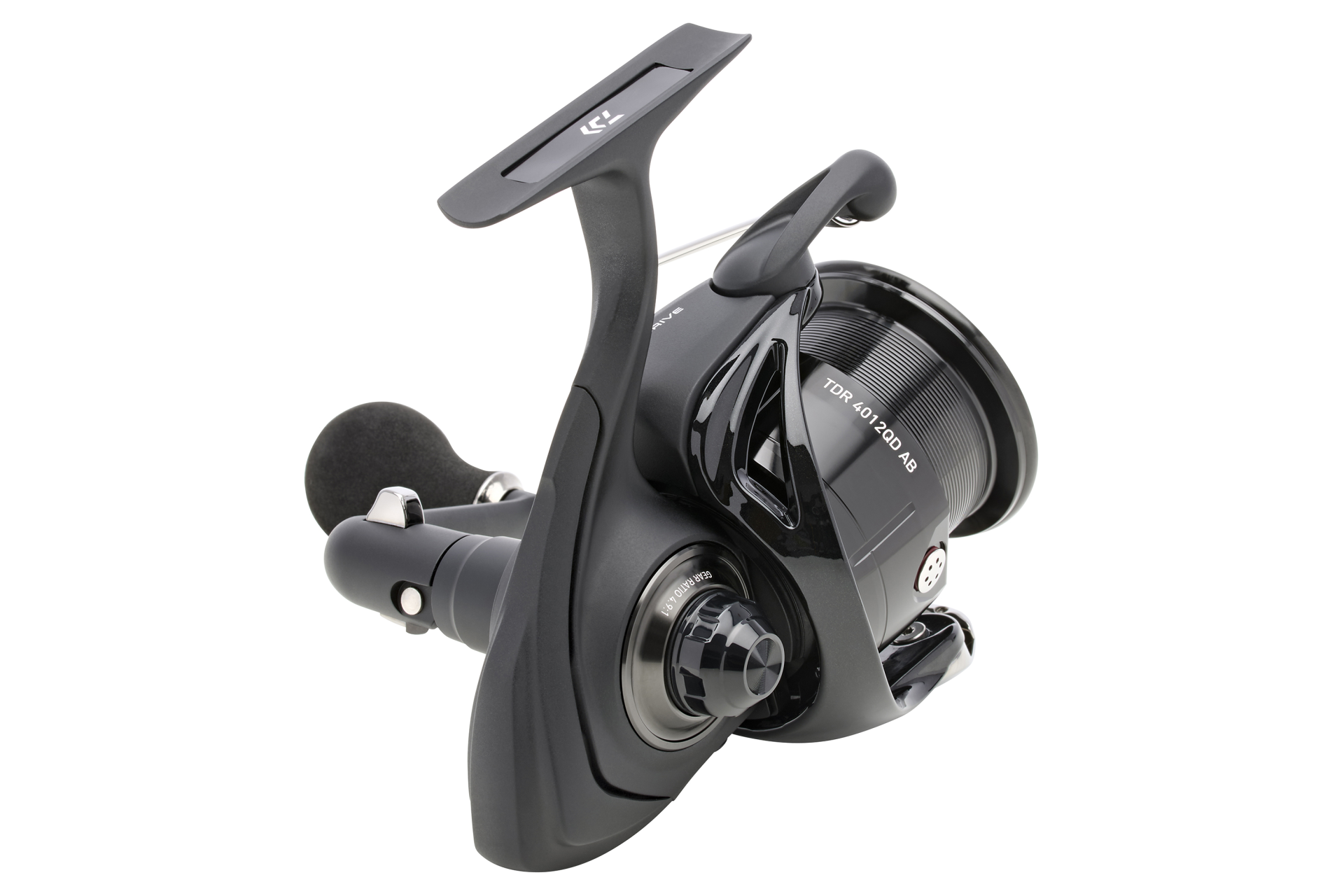

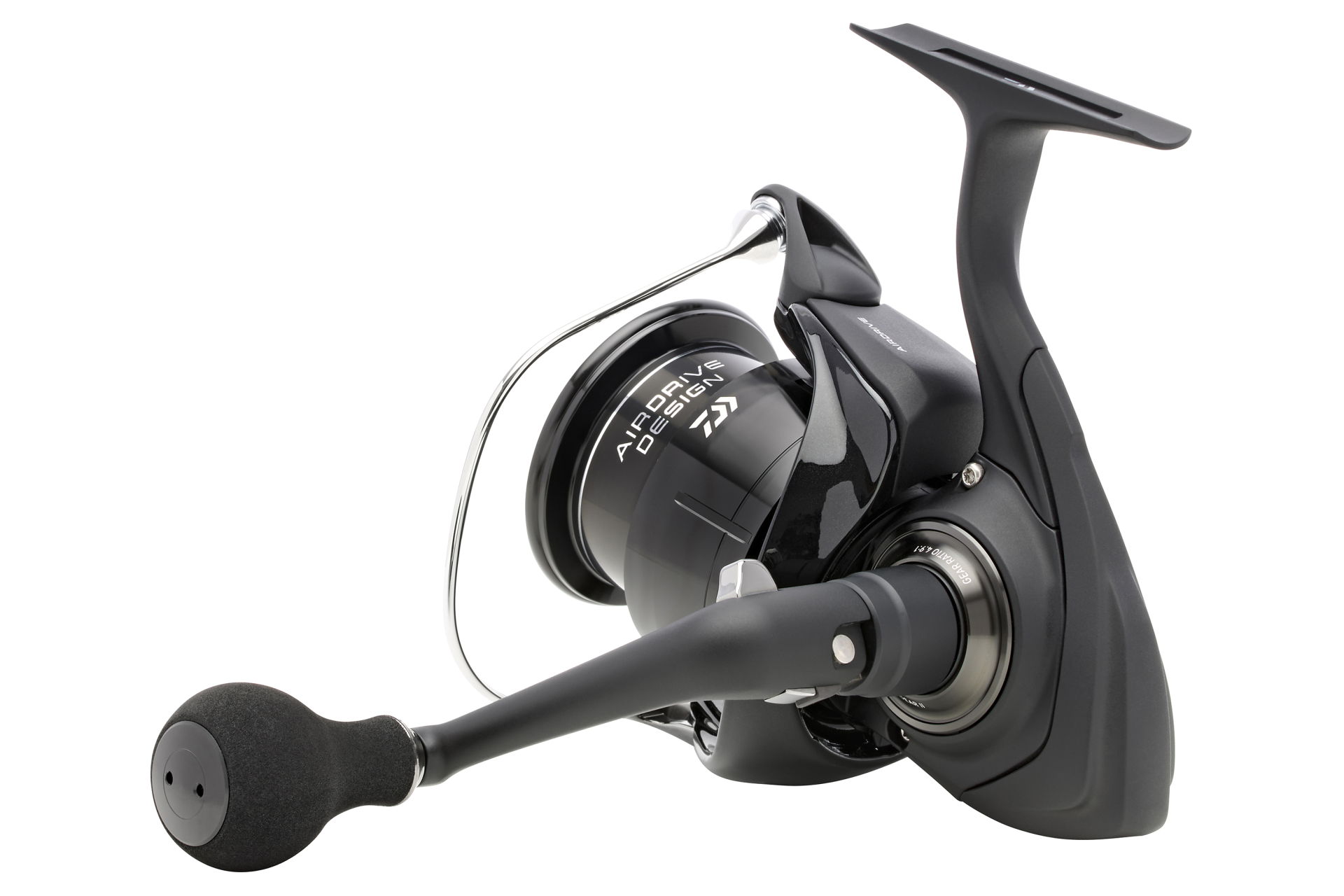

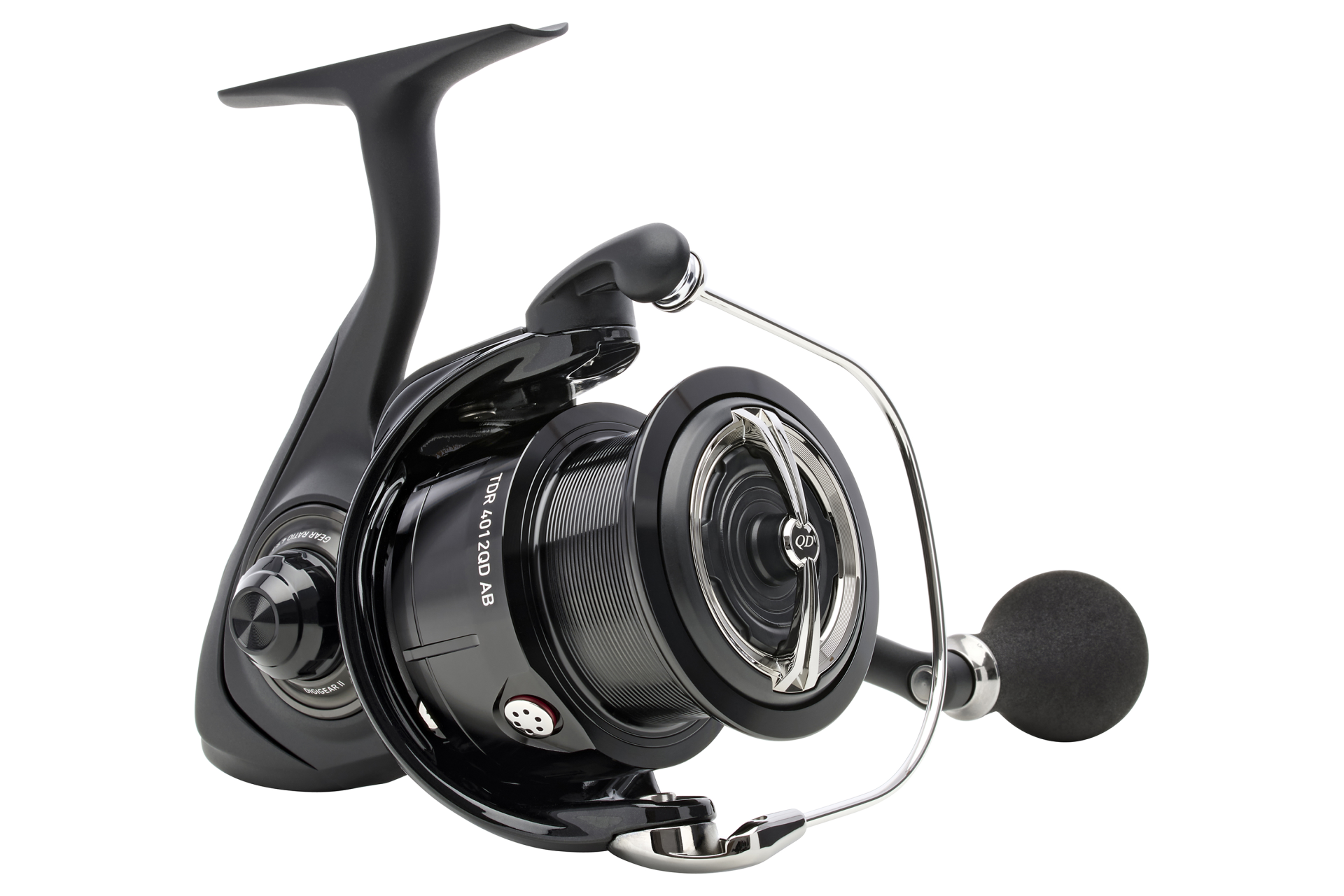

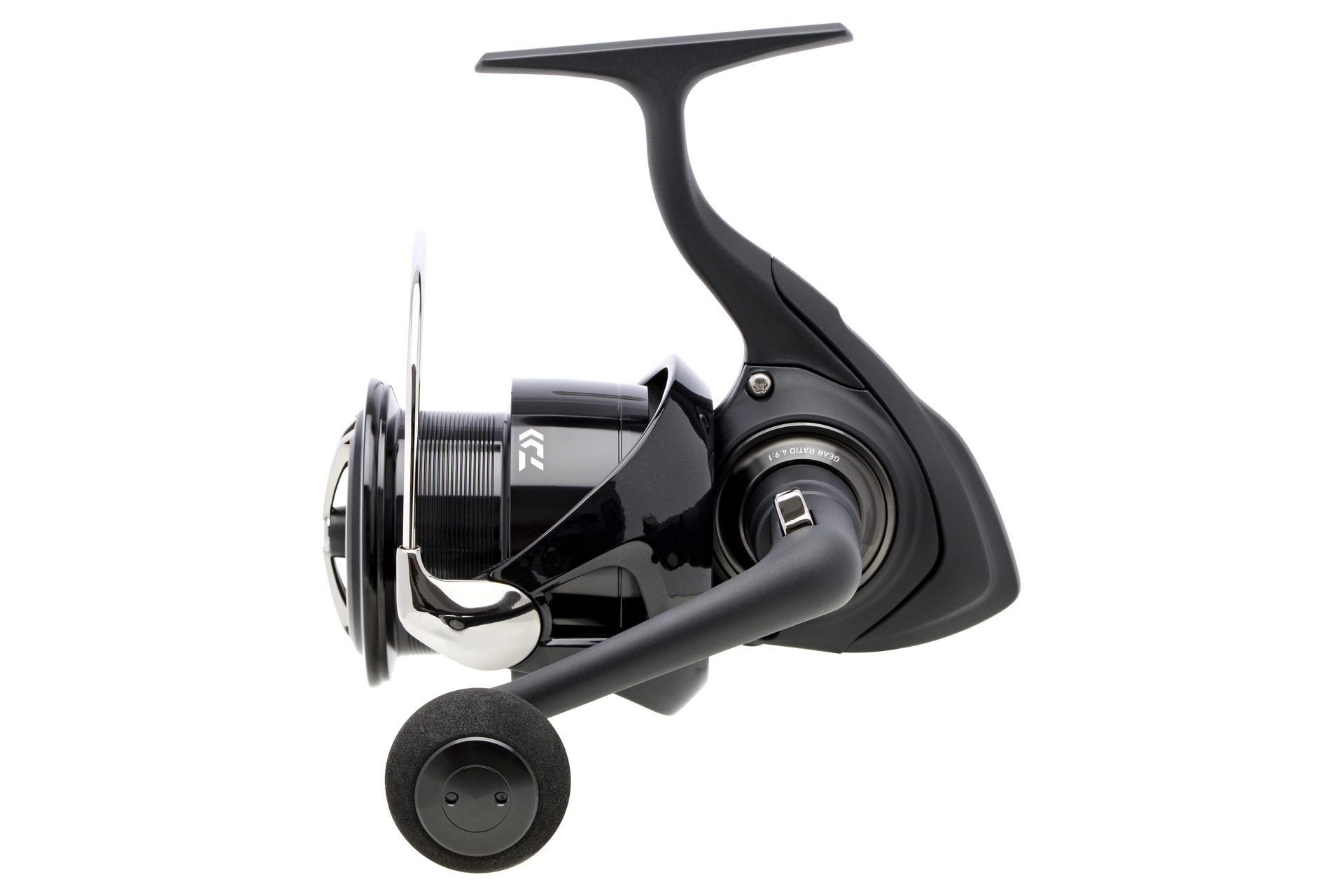

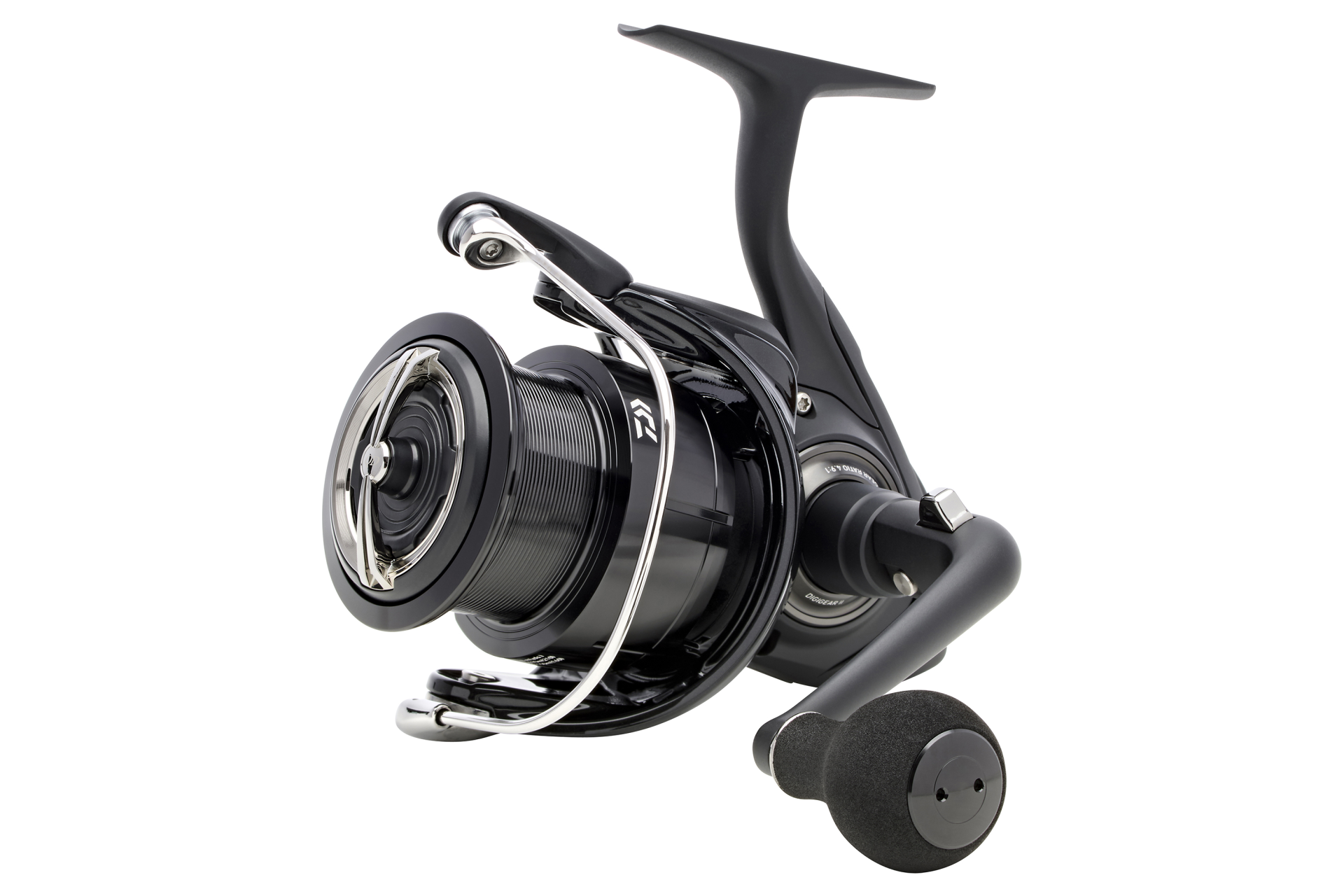

24 TDR QD ABMatch & feeder reel

1/6: Article No. 10518-412 Pictures may differ from the original.

show text complete

Black is beautiful! The 24 TDR AB feeder reel.

The AB model features the same specs. as the 24 TDR Match & Feeder and differs only in coloration – perfect for visually coordinating your setup.

The lightweight and torsion-resistant Airdrive rotor, combined with the completely redesigned Airdrive bail, ensures improved line management and reduces the risk of tangles on the bail arm, especially in windy conditions and when using thin lines.

The powerful Tough Digigear drive gear is installed torsion-free inside the aluminum body for long lasting performance and offers optimal power transmission under load – ideal for quickly bringing cage feeders to the surface or effortlessly reeling in heavy fish.

It features a spring-loaded HIP line clip. With screwed-in fast-fold aluminum handle and EVA handle knob!

Warnings (PDF)

AIRDRIVE Design
Aluminum reel body
8 ball bearings (incl. 1 CRBB®)
AIRDRIVE ROTOR®
TOUGH DIGIGEAR®
QD® Quick drag system
ABS® aluminum longcast spool
HIP® line clip
AIRDRIVE BAIL
Twist Buster® III line roller
One-touch aluminum fast snap handle
Round EVA handle knob

Article No.	Size	BB		Capacity	Ratio	Retrieval	Drag	Weight	RRP*
		CRBB	total	m/mm		cm	kg	g
10518-312new	3012	1	8	150/0.28	4.7:1	79	12.0	285	299.00 €
10518-412new	4012	1	8	150/0.28	4.9:1	86	12.0	380	329.00 €

* Recommended retail price in €

Spare parts

Article No.	Matching with Reel(s)			Material
	Model(s)	Art.-No.	Size	Spare Spool
19518-312new	24 TDR QD AB	10518-312	QD AB 3012	aluminum
19518-412new	24 TDR QD AB	10518-412	QD AB 4012	aluminum

AIRDRIVE DESIGN | Concept

Rotation like you have never felt before. The future of DAIWA Spinning Reels is AIRDRIVE Design. By reducing the weight of rotor, spool & bail assembly, a lighter rotation is achieved. The effortless rotation allows the angler to feel the true joy of trouble free function. This new chapter starts with 22' Exist.

AIRDRIVE DESIGN VIDEO

Consequences of the AIRDRIVE Design

Reel balance improvement
16% lighter front unit compared to the 18' Exist (2500size reel used for the comparison) Weight adjustment and reel balance improvement allows angler to cast freely with control.
Rotation improvement
The sensitivity and responsiveness of the reel has seen significant improvement. Low inertia allows anglers to experience a quick reaction and smooth running. The new AIRDRIVE roter instantly starts and elevates the control.
Less line trouble
By combining the benefits of AIRDRIVE Rotor & AIRDRIVE Bail, along with Twistbuster III technology, 22' Exist is the easiest to manage spinning reel created by DAIWA!

AIRDRIVE SPOOL

Design reflects the future.
The stand out features of the AIRDRIVE Spool would have to be the newly shaped spool skirt and the simple single silver coloured cosmetic. Just by looking at the spool it is clear the structure has been redeveloped, reducing the weight and maximising the feeling of presence.
Reducing the spool weight creates many benefits for a reel; the total weight of reel is reduced, oscillation is improved, less resistance during winding and rotation, better balance when attached to the rod and of course the reel feels light and easy to fish.
In addition, DAIWA has added a skirt to the bottom of the spool edge to prevent line getting caught behind the spool and tangling with the main shaft.
The drag sound and clicker has also been redesigned to create a higher pitch drag sound.

AIRDRIVE SHAFT

Friction free rotation.
Vertical rotational force from the handle is converted by the pinion gear to horizontal rotation. The mainshaft goes through the pinion gear to support the oscillation of the spool. To create a smoother oscillation and rotation, improvement to the mainshaft and pinion gear was required.
Most DAIWA spinning reels use linear shaft which has a non contact structure between the mainshaft and the pinion gear itself. The linear shaft creates less friction resistance which leads to smoother rotation along with minimal power loss.
The newly developed AIRDRIVE Shaft has taken the same benefits and improved further. AIRDRIVE Shaft also has a non contact structure between the mainshaft and the pinion gear. In addition to this, both ends of pinion gear are now supported with bearings to relay the crank power from the handle to the rotor with a higher level of efficiency.
AIRDRIVE Shaft creates the feel of smooth, quiet rotation and provides anglers with torque and power.

AIRDRIVE BAIL

Trouble free future.
DAIWA’s well known technology AIR BAIL has seen further improvement with the concept of AIRDRIVE. The AIRDRIVE bail is the next evolutionary step in bail design and perfectly matched with the new AIRDRIVE concept. DAIWA succeeded in designing a somewhat thinner bail that nevertheless offers the required strength and further decreases the reel weight. Compared to the 18' Exist the new AIDRIVE bail reduces the weight by 33% (Size 2500).
Creating the bail in a smaller diameter reduces weight to create stress free and user-friendly fishing experience. DAIWA has adjusted the angle of bail setting to improve the line movement into the roller. Careful attention was given to the roller and slider and individual design alterations were done for each size of 22' Exist, perfectly adjusting the line management for each size of the reel.

AIRDRIVE ROTOR

Low inertia is the key.
A lighter rotor increases the functionality of small spinning reels. The lighter and more compact rotor will require less initial force to rotate, creating that feeling of low inertia and effortless start up. The new AIRDRIVE rotor is made of Zaion. The robustness is the same as at the 18' Exist but nevertheless DAIWA was able to reduce the weight of the 22' Exist significantly. The goals during the development were to ensure an extremely light and smooth running.
The rotor weight has been reduced by 16% compared to the previous edition (#2500) and sets a new benchmark regarding rotor design.
